Roll Cage DREAM Package
$ 93.26

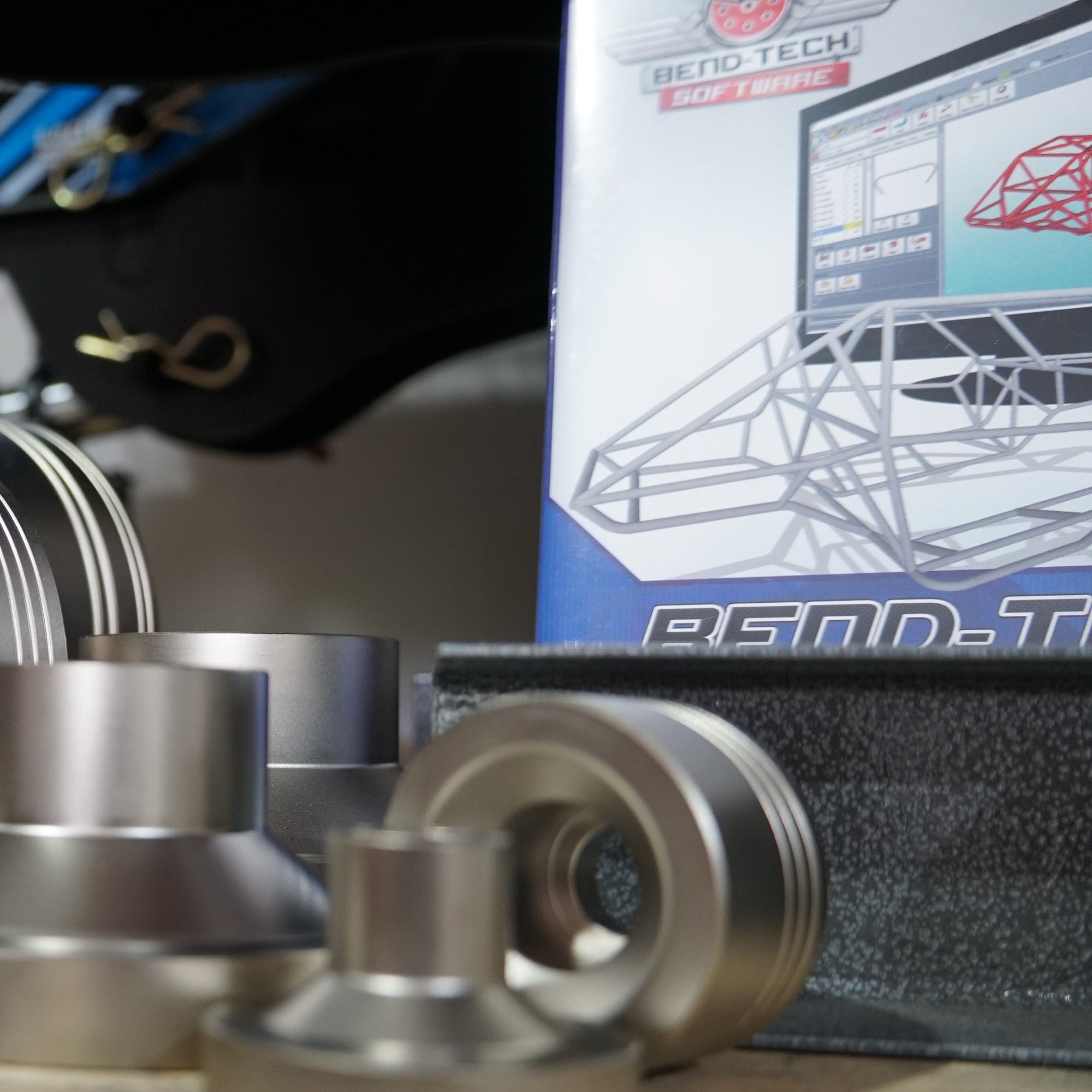

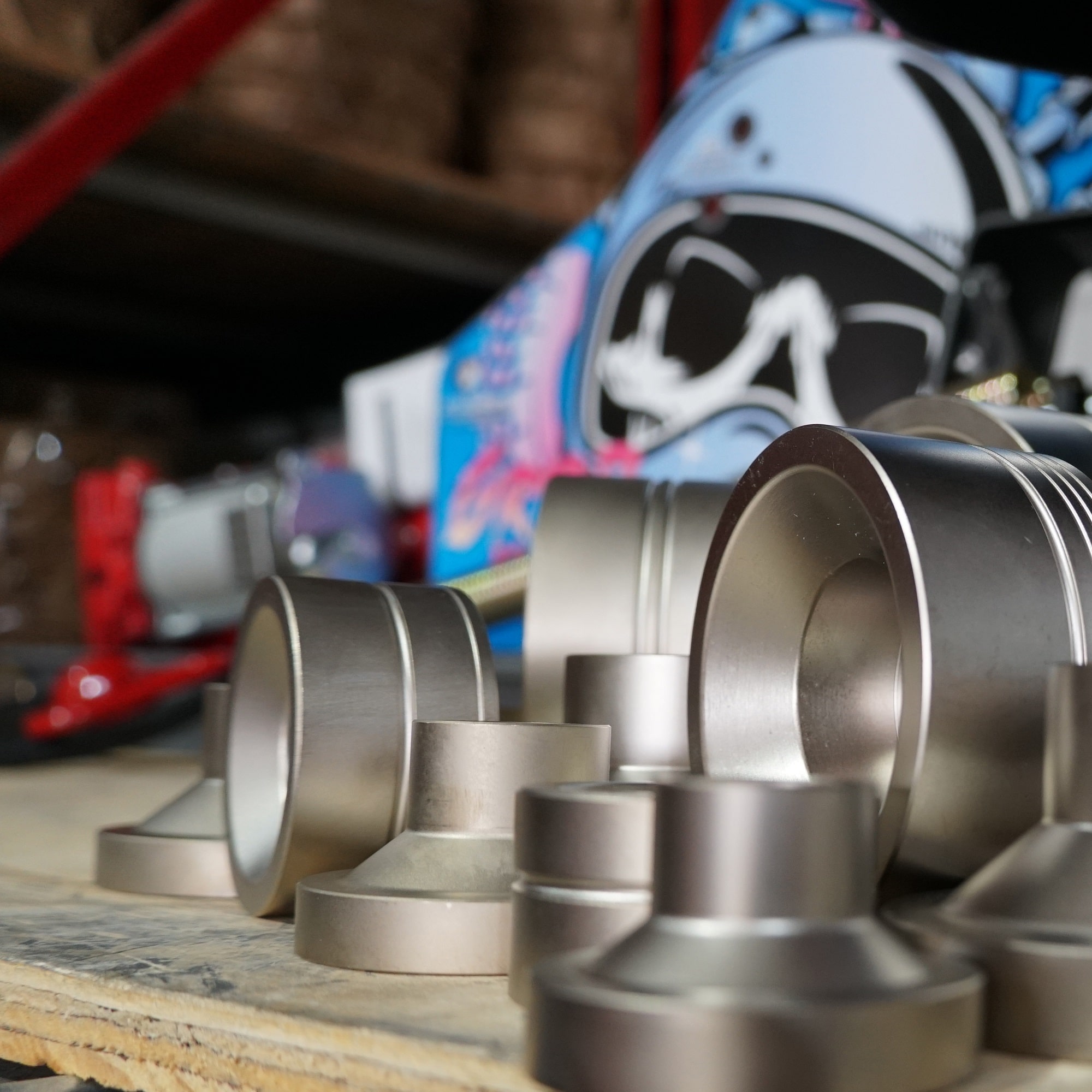

- Description We created a unique package aimed at accurate and efficient roll cage fabrication that was as lean as possible, while still including a notcher, multiple dies, prototractors/software, and a full set of nickel plated dimple dies. The result is the roll cage dream package. Everything you need, nothing you don’t! For an even more complete setup, add our elite cart and pedestal mount for the notcher so they can roll around your shop together. M605 Warning: DuraPlates come pre-installed on all powder-coated frames; however, they are not installed on the wheels. Wheels are reamed and tapped for easy installation by the customer. If you’re purchasing a weld-together kit, you may need to minimally ream or clean up the 3/8″ holes during assembly.Please note: DuraPlates are not automatically included with weld-together kits. Click here to add DuraPlates to your cart. M625 Warning: DuraPlates are pre-installed on all powder-coated frames and wheels. For weld-together kits, some minor reaming or cleanup of the 3/8″ holes may be required during assembly. Please note: DuraPlates are not automatically included with weld-together kits. Click here to add DuraPlates to your cart. List of what is included: Dream Package 1.75 & 1.5 option: M625 (Extreme Heavy Duty) Bender, Powder Coated VersaNotcher 1.75 x 6 CLR (Center Line Radius) Die, Roller & Billet Spacer (with 2 pressure dies & 2 index-lasered clamp blocks) 1.50 x 4.5 CLR Die, Roller & Billet Spacer (with 2 pressure dies & 2 index-lasered clamp blocks) 1.75 Hole Saw (3″ deep) x 2 1.50 Hole Saw (3″ Deep) x 2 Full Set of Nickel Plated Dimple Dies, 1/2″ to 2 1/2″ 6″ Prototractor Set (can be substituted for Bend-Tech Pro – additional fees may apply.) Air/Hydraulic Cylinder Tube Rotation/Index Gauges Upgraded Degree Indicator Breakaway Die Change Pin RogueFab 4.5″ Steel RF Logo (powder coated) x2 __________________________________________ Dream Package 1.625 (1 5/8″) option: M625 (Extreme Heavy Duty) Bender, Powder Coated VersaNotcher 1.625 (1 5/8″) x 6 CLR (Center Line Radius) Die Set (with 4 index-lasered clamp blocks for ultra-complex bending projects) Thin Wall Roller assembly for improved bend quality on thin chromoly Set of 1.625 Thin Wall Roller pressure dies, installed and set for 6″ CLR 1.625 Hole Saw (standard depth) x 6 Full Set of Nickel Plated Dimple Dies, 1/2″ to 2 1/2″ 6″ Prototractor Set (can be substituted for Bend-Tech Pro – additional fees may apply.) Air/Hydraulic Cylinder Tube Rotation/Index Gauges Upgraded Degree Indicator Breakaway Die Change Pin RogueFab 4.5″ Steel RF Logo (powder coated) x2 __________________________________________ Machine Hydraulic Power Requirements: The air/hydraulic option consumes 6 cubic feet of compressed air per minute (CFM) at 110 PSI and requires no electricity at all. As long as your air compressor has a storage tank, it doesn’t necessarily need to sustain 6 CFM continuously. Our other hydraulic systems are electric/hydraulic. The 1.5HP electric/hydraulic system draws approximately 8.1 amps at 220–250 volts AC, while the 2.0 HP system draws around 12.5 amps at the same voltage range. All of our systems are designed for 60 Hz power, but we offer options for 50 Hz upon request. They are also compatible with 208V power. Although we can wire the 2HP system for 110V if needed, it draws over 25 amps in that configuration, making it a highly uncommon and generally discouraged option. Machine Dimensions: M6xx tubing bender: (assembled, ready to bend): 12”x30” floor footprint. Overall dimensions 12”x47”x32” (LxWxH). Weight 140-200 lbs. M6xx Bender on Cart: 22”x34” floor footprint. Overall dimensions 22”x47”x68” (LxWxH). Weight 210 lbs (depends on cart contents). M6xx Mandrel Bender on Cart: 22”x34” floor footprint. Overall dimensions 22”x105”x68” (LxWxH). Weight 295 lbs (depends on cart contents). Changing dies is quick and easy! Capabilities of M605/625 metal tube bender We have the most affordable dies in the industry, and all of them bend 180 degrees. You can forget about “90 degree 1 shot” benders that stop at 90. Our bender can do 94 degrees in one shot, and then continue and bend past 180 after adjusting the hydraulics. Bends Carbon and Stainless Steel The M625 metal bender has been tested on carbon and stainless steel and works very well. Our line of tubing benders have an unmatched range of wall thicknesses that they can successfully bend due to their extreme capacity for thick walled tube on the M625 and their amazing thin wall range when equipped with the Rogue Fab Mandrel Attachment. Other Supported Materials Our M625 can also make S-Bends, which is shown in our videos section. Furthermore, it can bend: brass copper aluminum (round/square tube and pipe) thin-walled titanium for turbo manifold work and tubular titanium frames (when using our Mandrel Attachment) While this metal tube bender can bend super thick DOM tubing, it also bends thin 4130 chromoly for roll cages, and can still make accurate 3D bends with ease on either material. Flexible Design The best thing about our line of tubing benders is how they can easily grow with your shop. You can get the machine now as the M605 or the overkill-strong M625, and be up and running without spending your whole tool budget. Down the road, there is no need to sell this machine to upgrade: You can add a mandrel attachment to bend extremely thin tubing. You can upgrade to pressure roller dies for more complex bend geometry and bending aluminum You can upgrade to a 9.5 degree per second electric/hydraulic power system with auto stops for repeat parts. You can even add a backstop and rotation gauges to keep track of bend spacing and rotation between bends on 3D parts. Need storage space? We sell cart kits and completed carts for our machines. Want to get advanced? Our web page is the single most complete source for information on tube bending. Read all of it in our Technical Index (LINK). Are you worried about learning how to bend tube? Or learning a new machine? Ours is the easiest to use, and able to make to most complicated bends. Let us show you in under 7 minutes: Want to see a whole project from start to finish, and even more bending tricks that are 100% unique to our design? Watch this video: Please read our terms and FAQ for complete information about warranty, returns, and more.
