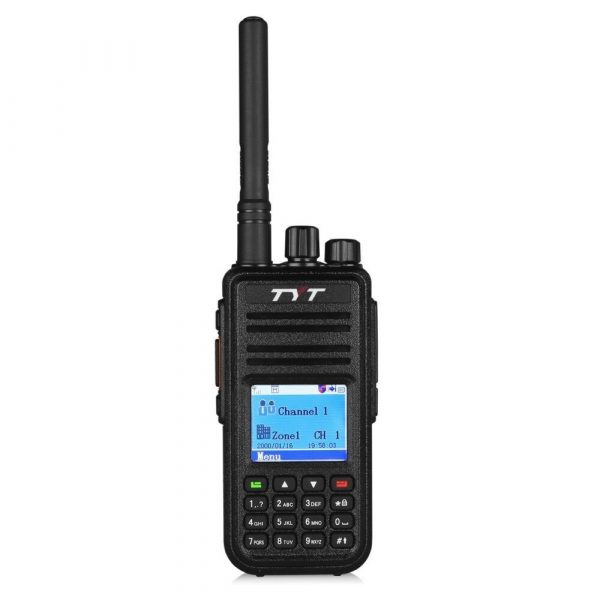

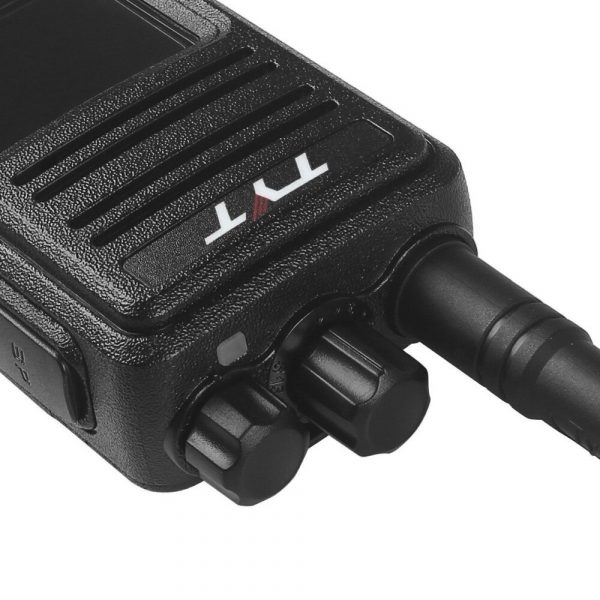

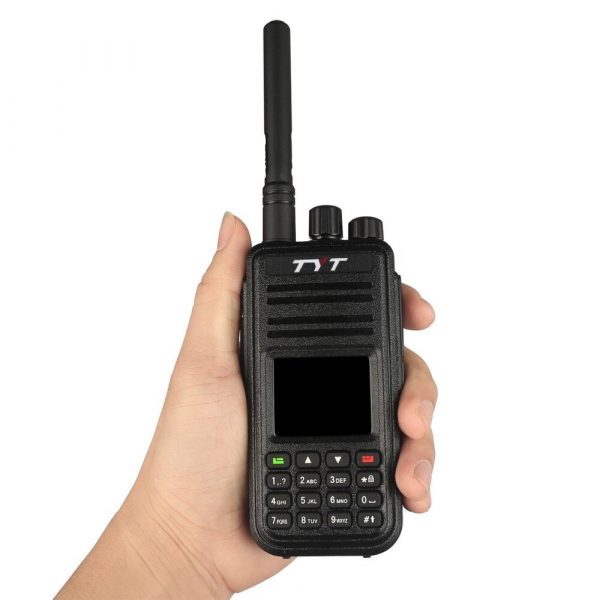

GPS TYT MD380 DMR Digital Transceiver Tytera MD-380G Waterproof Portable Radio
$ 99.27
- Waterproof DMR Digital TYT MD-380 Two Way Radio/Walkie Talkie VHF 136-174Mhz 1000CH CTCSS/DCS/DTMF Transceiver with GPS Main Specifications: Frequency range : VHF:136-174MHz/ UHF 400-480MHz Channel : 1000 Channels Channel Spacing : 12.5KHz Operating Voltage : 7.2V Battery Capacity : Li-ion 2000mAh Operating Temperature : -30°C 60°C Antenna Impedance : 50Ω Audio Output Power : <=1000mW Transmitter Output power : <=5W(Max) , <=1W(Min) Frequency Stability : ±1.0PPM Adjacent Channel Power : <=-60dB Free Time Slot Power : <=57dBm Hum and Noise : -40dB12.5KHz Spurious Radiation : Atenna:9KHz-1GHz <=-36dBm 1GHz-12.75GHz <=-30dBm FM Modulation Mode : 12.5KHz:11K0 F3E 4FSK Digital Mode : 12.5KHz(data only):7K60FXD 12.5KHz(data voice):7K60FXE Modulation Maximum Deviation : 2.5KHz/12.5KHz Nonactive Slot Power : -57dBm Digital Protocol : ETSI TS 102 361-1 -2 -3 Vocoder Type : AMBE 2TM Audio Response : 1dB~-3dB Modulation BER(Bit Error Rate) : <=5% Receiver Analog sensibility : 0.35μV/-116dBm(20dB SINDA) 0.22μV/-120dBm(Type) Digital sensibility : 0.3μV/-117.4dBm (BER 5%) 0.22μV/-110dBm (BER 1%) Co-channel Rejection : >=-12dB Adjacent Channel Selectivity : TIA603C:65dB ETSI:60dB Spurious Response : TIA603C:75dB ETSI:70dB Rated audio power : 1W Audio response : 1dB~-3dB Rated audio distortion : 3%(Type) Spurious Radiation : Antenna:9KHz-1GHz <=-57dBm 1GHz-12.75GHz <=-47dBm 1. 1000 channels 2. Remote kill/stun/activate 3. Voice prompt 4. Power-on protection 5. Color LCD display 6. Text messages in digital mode 7. Encryption function 8. Built-in CTCSS/DCS 9. Up to 1000 channels 10. Priority scan 11. Complying with digital protocol ETSI TS 102 361-1,-2,-3 12. DTMF decoding and encoding 13. Updated software available for new features 14. Private call, group call, all call in digital mode 15. Operate in both Digital & Analogue mode 16. Allows easily migrate from analog to digital 17. Provide clearer voice communications in digital mode, throughout the coverage Package Include as below: 1 x TYT MD-380 Digital Mobile Radio (DMR) 1 x Li-ion Battery 2000mAh 2 x Antenna 1 x Belt Clip 1 x Charger 1 x Adapter 1 x Programming Cable & CD 1 x User’s Manual
