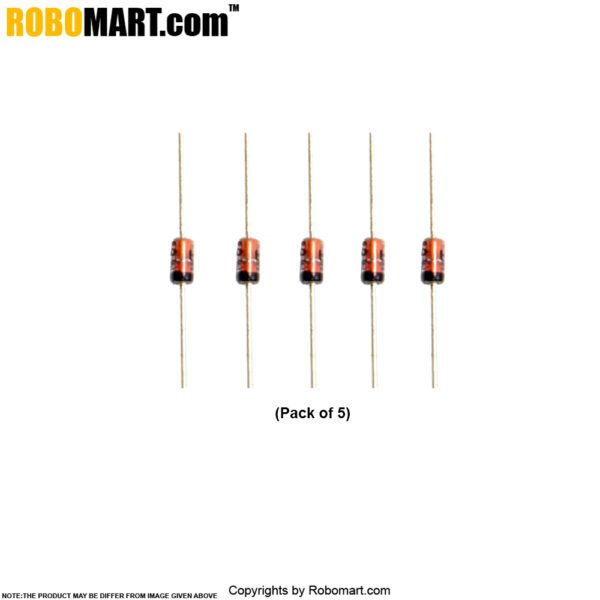

2A07 700V 2A General Purpose Diode (Pack Of 5)
$ 0.11
- A diode is a two-terminal electronic component with asymmetric conductance; it has low resistance to current in one direction, and high resistance in the other direction. Features of 2a07 /700v /2a General Purpose Diode: Peak Repet. Reverse Voltage (Vrrm): 1000V. Max. RMS Reverse Voltage (Vr): 700V. Average Rectified Current (Io): 2.0A. Max. Reverse Current (Ir): 0.005mA. Max. Forward Voltage Drop (Vf): 1.1V. Applications of 2a07 /700v /2a General Purpose Diode: It is used in rectifier circuit. It is used in switching devices. It is used in short circuiting protection purposes. Also Searched as : diode online, rectifier diode, witching diode, 2A07 diode. SKU: RM001536 Category: Diodes and Bridge Rectifiers (DIP) Warehouse Code: R00000-S00-P00-Z00
