BlackMagic Design Mini Converter – SDI to Analog
$ 18.90

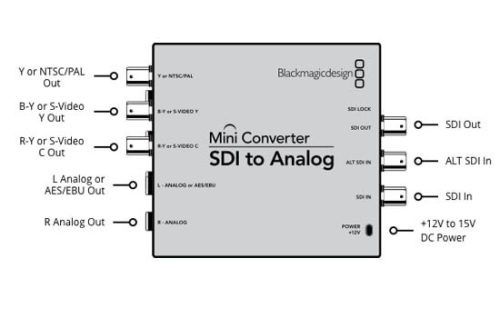

- Description Connections SDI Video Inputs 1 x SD, HD or 1.5G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x SDI Loop Output. SDI Rates 270Mb, 1.5G Analog Video Outputs NTSC, PAL, S‑Video and component SD/HD from 1.5G‑SDI input. Analog Audio Outputs 2 channels of professional balanced analog audio with standard 1/4 inch jack connections. Digital Audio Outputs 2 channels of balanced AES/EBU audio. SDI Redundant Input Automatically switches over if main SDI input is lost. Multi Rate Support Auto detection of SD, HD or 1.5G‑SDI. Updates and Configuration USB Reclocking Yes Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, ITU‑R BT.656 and ITU‑R BT.601. SDI Video Rates SDI video connections are switchable between SD and HD. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Auto detection of SD, HD or 3G‑SDI. Analog Video Standards 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60 Analog Color Space YUV Video Production Services We’re here to help your Brisbane or Gold Coast business blast off with creative ideas and stunning videography for your corporate videos. Get a Quote! Analog Color Precision 4:2:2 Format Conversion HD to SD down converter.
