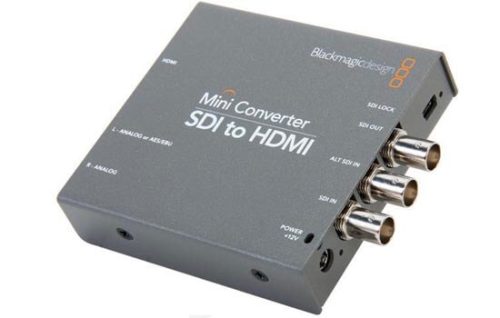

BlackMagic Design Mini Converter – SDI to HDMI
$ 18.90

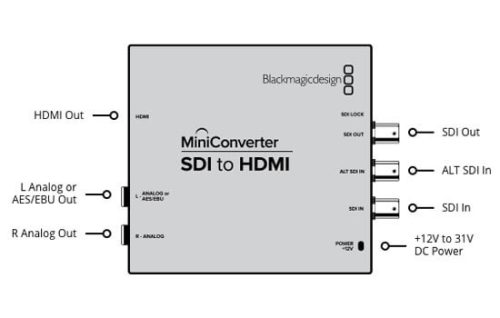

- Description Connections SDI Video Input: 1 x SD, HD or 3G-SDI. SDI Video Output: Automatically matches the SD, HD and 3G-SDI video input HDMI: HDMI type A out. SDI Redundant Input: Automatically switches over if main SDI input is lost. Multi Rate Support: Auto detection of SD, HD or 3G-SDI Updates and Configuration: USB Reclocking:Yes Standards SD Format Support 525/23.98 NTSC, 525/29.97 NTSC,625/25 PAL HD Format Support 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. SDI Compliance SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 372M,SMPTE 424M-B, SMPTE 425M. SDI Video Rates SDI video connections are switchable between standard definition, high definition level B 3G-SDI. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of48 kHz and 24 bit. SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV and RGB SDI Auto Switching Automatically detects SD, HD or 3G-SDI. HDMI Format Support 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25 Video Production Services We’re here to help your Brisbane or Gold Coast business blast off with creative ideas and stunning videography for your corporate videos. Get a Quote! HDMI Color Space YUV and RGB HDMI Color Precision 4:2:2 and 4:4:4
