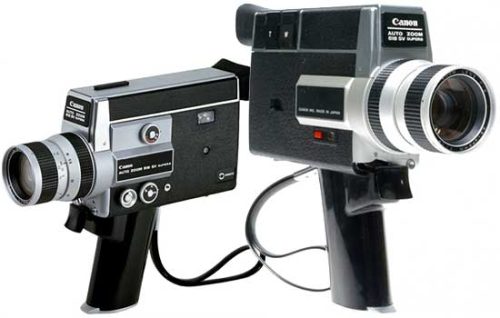

Canon Auto Zoom 518SV Super 8 film camera
$ 63.00
- Description This was a Super 8 version of the Single 8 518 SV developed at the same time. Performance was improved significantly from the preceding model, the Auto Zoom 518 Super 8, thanks to a powerful Servo EE mechanism and a new optical system. This model was made more useful by employing the drop-in method for the film-loading mechanism and a firm fixed grip. Fade in/out became possible because the aperture could be completely closed via a manual aperture control. Video Production Services We’re here to help your Brisbane or Gold Coast business blast off with creative ideas and stunning videography for your corporate videos. Get a Quote! Type Super 8 type 8mm movie camera Image Size 4.2 x 5.7 mm (Projection image size: 4 x 5.4mm) Film Super 8 film cartridge Lens Focal Length/Speed 9.5 – 47.5mm f/1.8 (14 elements in 11 groups, including 6 new type glass elements). Inner diameter: 48 mm, outer diameter: 50 mm. Amber and magenta coating. Focal length can be shortened to wide angel zoom of 6.2 – 31 mm with the Wide Converter 0.65X and extended to super telephoto of 15.6 – 78mm with the Tele Converter 1.6X. Zooming Ratio 5x Focusing Manual (Front lens group rotating method), 1.2 m to infinity Zooming Power zooming (Approx. 6 sec.) and manual zooming with zooming ring. Rotation angle: Approx. 100 degrees. Filter Size 48 mm Viewfinder Type Single-lens reflex type Rangefinder Prism screen rangefinder (Micro-prism rangefinder) Dioptric Adjustment -3 to 1 diopter Viewfinder information Aperture value, exposure meter needle, over/under exposure warnings, film end precaution Exposure Control Type TTL Servo EE with a CdS exposure meter. Automatic aperture setting coupled to loaded film speed and filming speed. Metering Range ISO 400 f/1.8, 18 fps – ISO16, f/32, slow motion Film Speed Automatic ISO setting by film cartridge Tungsten type film: ISO 25, 40, 64, 100, 160, 250 and 400 Daylight type film: ISO 16, 25, 40, 64, 100, 160 and 250 CCA Filter A Color Conversion filter A is built-in to use tungsten type film under daylight. The CCA filter is automatically cancelled with loading of a daylight type film cartridge. Manual cancellation of the CCA filter is possible. Manual Aperture Control Automatic and manual aperture setting with the aperture setting ring. Fade in/out possible with manual aperture control. Film Drive Type Power filming by a high performance micro-motor Filming Speed 18, 24 fps, slow motion (Approx. 36 fps) and single frame Power Source Four AA batteries in the grip for film drive and exposure metering. Battery Life Sufficient power for 10 cartridges under normal temperature Footage Counter Counts up. Automatic resetting by unloading of a cartridge. Battery Check Push button checking. Shutter Shutter Opening 160 degrees Release Socket Sockets for continuous shooting and single frame. Main Switch Three way switch for off, running lock and remote control Film End Precaution A yellow warning lamp lights up 2 ft. before film-end. Safety Device Preventing mistakes on shooting: Over/under exposure warning and film transportation confirmation window. Remote Control Possible with the Remote Switch 3. Grip Fixed. Contains batteries. Dimensions (W x H x D) 60.5 x 193.5 x 212 mm Weight 1,200 g (Body only) ▲ Contact Us Terms of use Privacy Notice © Canon Inc.
